Determining Water and Sediment in Petroleum Products |
|
|
|
|
|
Development of a Standardized Test Method for Determining Quantity of Water and Sediment in Crude Oil on The Field |
|
|
|
|
|
Currently a few laboratory test methods, like Sediment in Crude Oils and Fuel Oils by the Extraction
Method (ASTM D473), Water in Crude Oil by Distillation (ASTM D4006), and Potentiometric Karl
Fischer Titration (ASTM D4377) are used to determine the contaminates in crude oil. ASTM D96,
Standard Test Method for Water and Sediment in Crude Oil by Centrifuge Method (Field Procedure), is
meant for onsite usage instead of in a laboratory environment. The K60094 Oil Test Centrifuge is a
portable centrifuge designed expressly for petroleum testing applications. This device also contained
four centrifuge tubes of either ASTM conical type (6 or 8"), pear shaped (100 mL), or finger tube (12.5
mL).
|
|
|
|
|
|
|
|
|
|
|
|

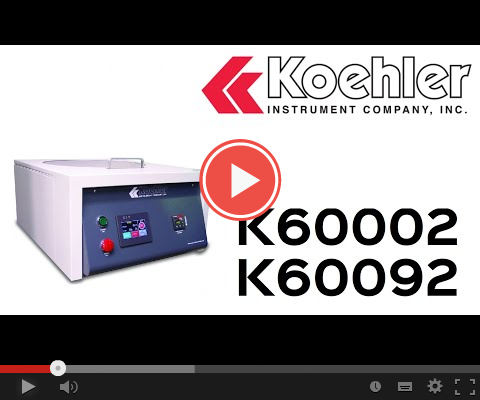

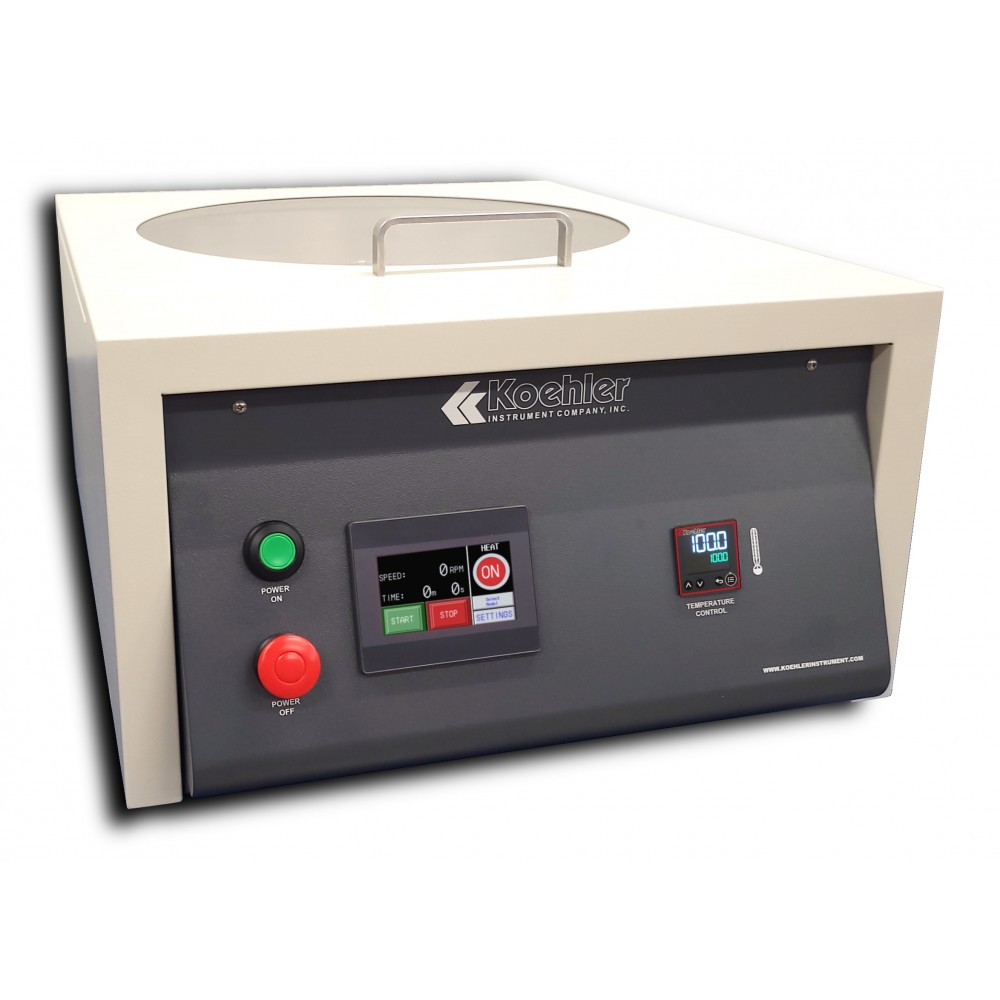

Automatic Heated Oil Test Centrifuge K60002 | K60092 |
The Automatic Heated Oil Test Centrifuge is a fully automatic bench top centrifuge designed for petroleum product testing. The unit features an integrated touch screen that can be used to turn the heat on and off, set the duration of the test, set the RCF/RPM values and choose the type of rotor assembly and corresponding glassware to be used during the test. |
|
|
|
|
|
|
|
|
|
The Koehler Automatic Test Centrifuge is designed to test for trace sediments and water in petroleum products by a variety of ASTM test methods |
|
Conforms to the specifications of |
ASTM D91, D96, D893, D1796, D2273, D2709, D2711, D4007, D5546; IP 75, 145, 359; API 2542, 2548; ISO 3734; DIN 51793; NF M 07-020
|
- Choice of long, short, pear, or finger rotor assembly to accommodate corresponding centrifuge tubes
- Accommodates four (4) centrifuge tubes of 6 or 8” conical ASTM types, long, short, pear or finger tubes
- Automatic control of acceleration ramp, centrifugation speed, and timing functions
- 4-1/2” LCD Touch Screen Control Panel
- Substantial insulation for reduced heat loss
- Precise balancing, quiet operation
|
|
|
|
For more information on this unit please visit our website or reach out to us using the links below! |
|
|
|
|
|
|
|
OTHER PRODUCTS OF INTEREST |
|
|
|
|
|

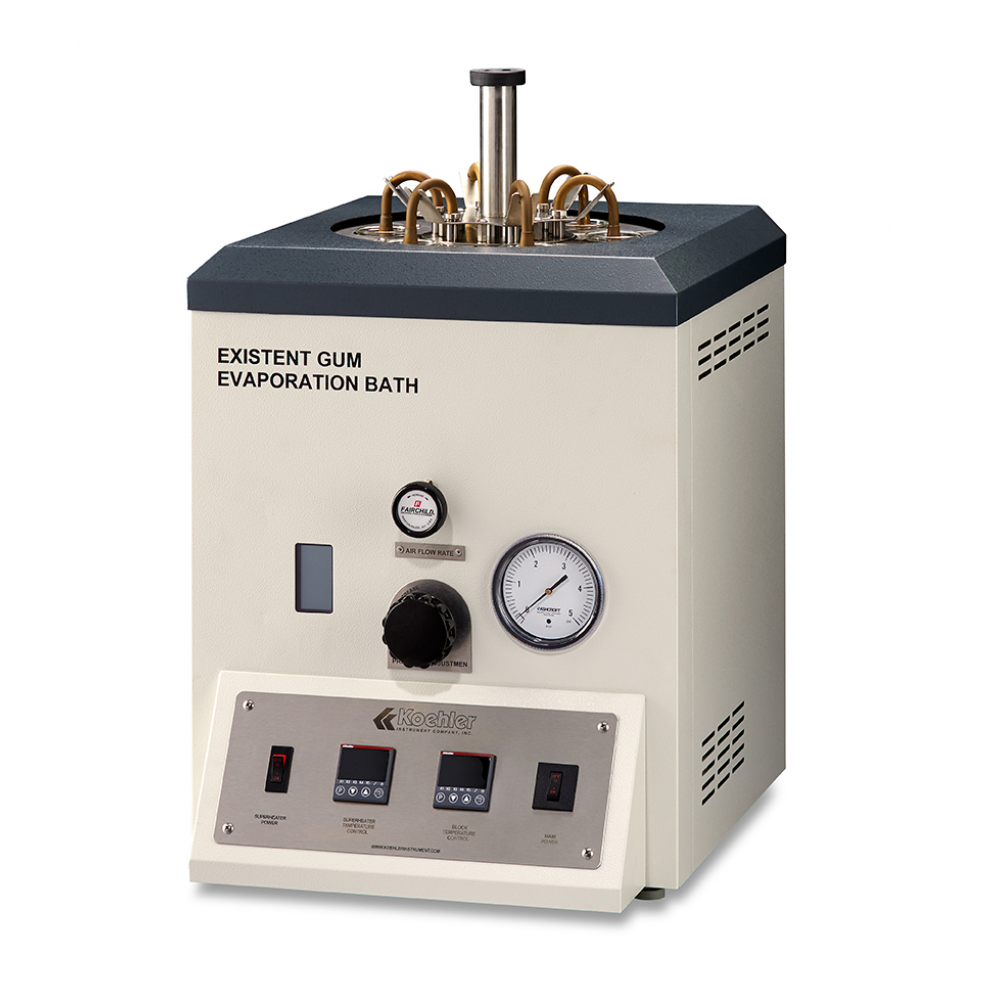

Existent Gum Evaporation Bath
|
Gum formed during fuel storage can deposit on induction system surfaces, intake valves, stems and guides. To test for gum content, a 50mL sample is evaporated in an aluminum block bath for a specified period under controlled conditions of temperature and flow of air (aviation and motor gasolines) or steam (aircraft turbine fuel).
|
|
|
|
|
|

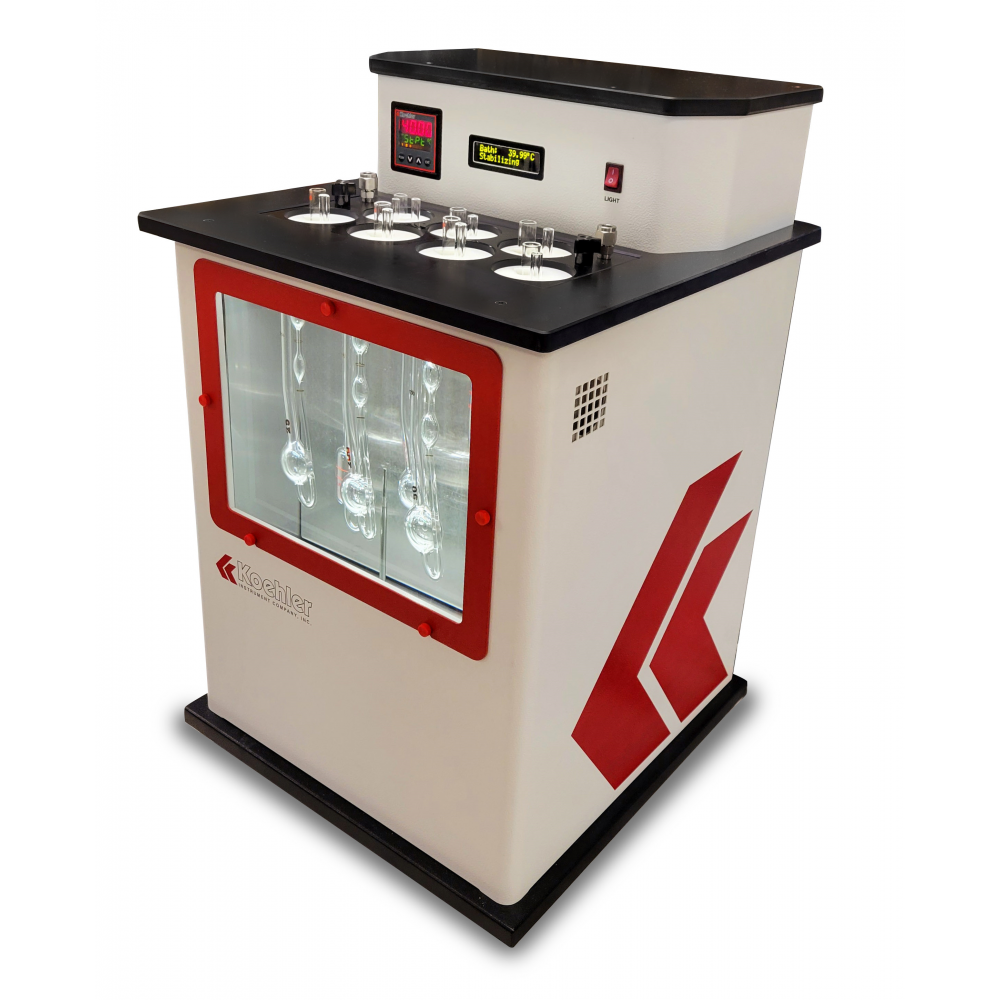

Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.
|
|
|
|
|
|
For more information on our line of products, visit our website using the link below! |
|
|
|
|
|
|
|
|
|
|
|
|
|
Koehler has recently created a series of segmented newsletters. If you are interested in receiving newsletters more relevant to your product interests, please visit the link below. There are currently 5 segments, but more will follow throughout the year! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
